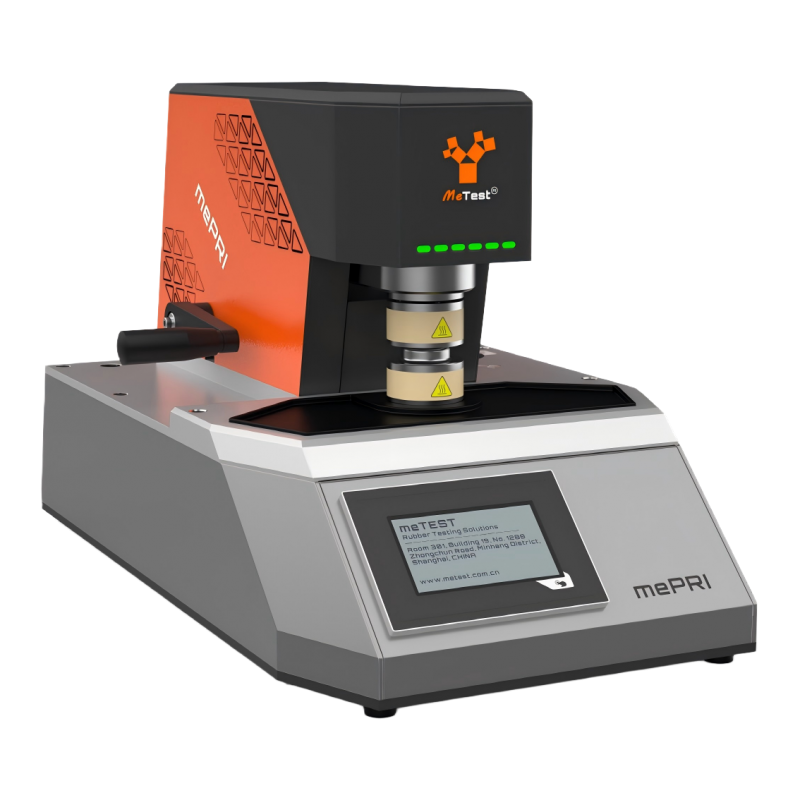

mePRI Rapid Plastometer

mePRI Rapid Plastimeter measures the plasticity or viscosity of polymers and unvulcanized rubber. The testing process is simple, clean, and fast. It can be used in combination with the meOPRI Plasticity Aging Tester to determine the Plasticity Retention Index (PRI) of raw natural rubber.

PRI (Plasticity Retention Index) is a measure of the oxidation resistance of raw natural rubber.The oxidation effect is evaluated by measuring the plasticity before aging (P0) and the plasticity after aging at 140°C for 30 minutes in the plasticity aging test chamber (P30): PRI = (P30 / P0) × 100

Features and Advantages

  • Ultra-rigid frame designed with finite element analysis for enhanced durability.
  • Fully automated operation for user-friendly experience.
  • Adjustable platen temperature: 25°C to 200°C.
  • Flexible conditioning and loading times.
  • Digital display with real-time temperature and graphical representation on computer interface.
  • Single/median mode operation.
  • Multi-parameter input and automatic storage (e.g., batch, quantity, time, operator).
  • Comprehensive calibration and service reminders.
  • Integrated P0 and PRI evaluation.

meTEST® Dedicated Sample Cutter

The rapid plastimeter is equipped with a dedicated sample cutting machine and comes with an upper platen diameter of 10mm. Additionally, we provide replacement platens with diameters of 7.3mm and 14mm, allowing for quick and easy platen replacement.

Features and Advantages

  • Durable and robust.
  • Sleek appearance with low operational noise.
  • Manual operation, energy-efficient and low maintenance.
  • No consumables/cutting plates required.
  • Cutting blade is sturdy and long-lasting, ensuring no sample contamination.
  • Safe and user-friendly manual cutting for rubber samples sized for plastimeters.
WPS图片(17)
第25页-105

Dedicated Sample Cutter

meOPRI Plastometer Aging Oven

meOPRI Plasticity Aging Tester is designed for the aging treatment of rubber. When used in combination with the mePRI Rapid Plastimeter, it enables the determination of the Plasticity Retention Index (PRI) of raw natural rubber.

Standards：BS 903 : PT A59, ASTM D 3194, ISO 2007

Features and Advantages

  • Ultra-rigid frame designed with finite element analysis, ensuringdurability and robustness.
  • Core structure with four chambers, each equipped with a drawerunit and sample tray.
  • High-quality thermal insulation in the housing minimizes heat loss.
  • Rear panel features an adjustable blower system that supplies preheated air to the chambers.
  • Fully automated sample testing for simple and user-friendly operation.
  • Temperature control accuracy: 140 ± 0.2°C.
  • Four independent chambers, each with a dedicated timer.
  • PID controller maintains target temperature and continuously displays chamber temperature.
  • Early warning system: Triggers an alarm if temperature exceeds the set value by more than 10°C.
  • Digital temperature display, stability monitoring, and overheat protection.
  • Compatible with the mePRI Rapid Plastimeter to determine the Plasticity Retention Index (PRI).
